6.1.1 Searching over a BOM Item structure

For the assembly Item is possible to choose the Item level in the PaG for publishing.

For searching of published entities:

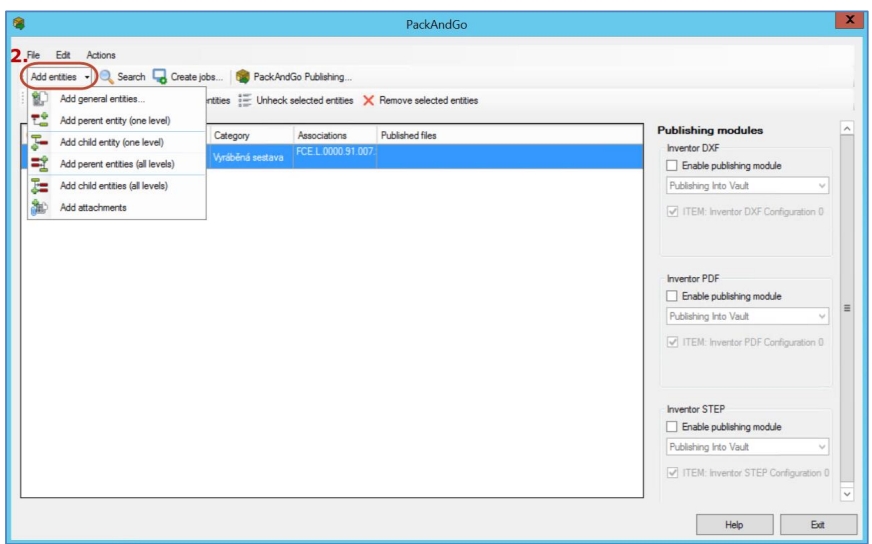

1. Select how deep the search is necessary through the “Add entities“ drop-down menu.

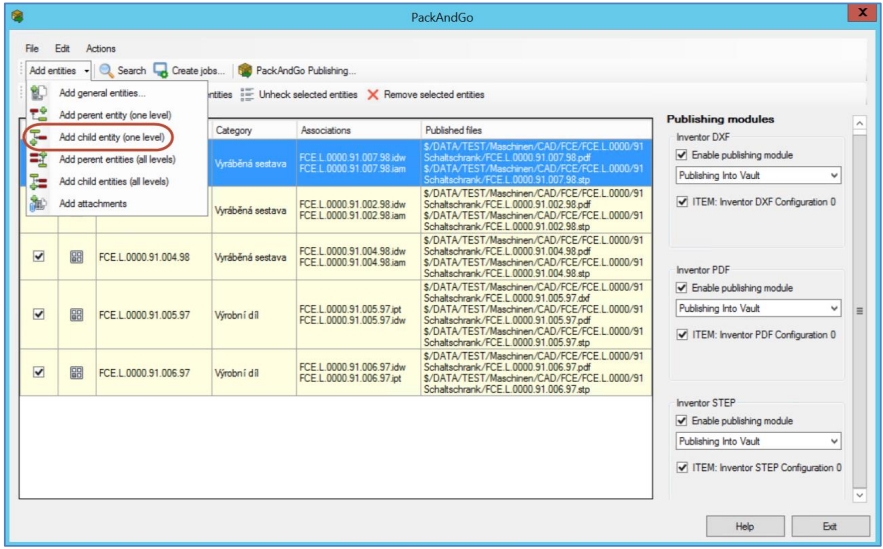

a) One level under the Item – „add child entity (one level)“,

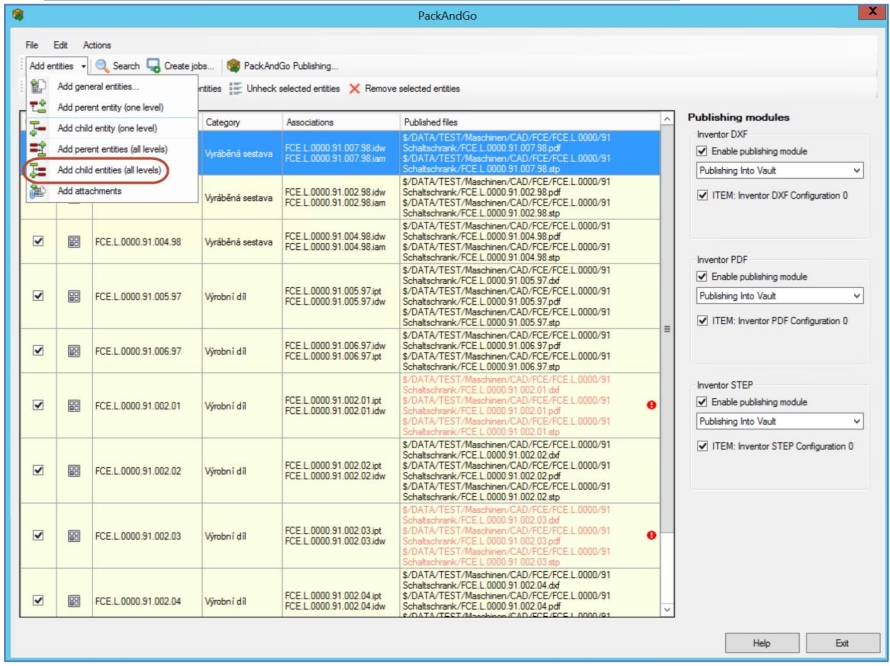

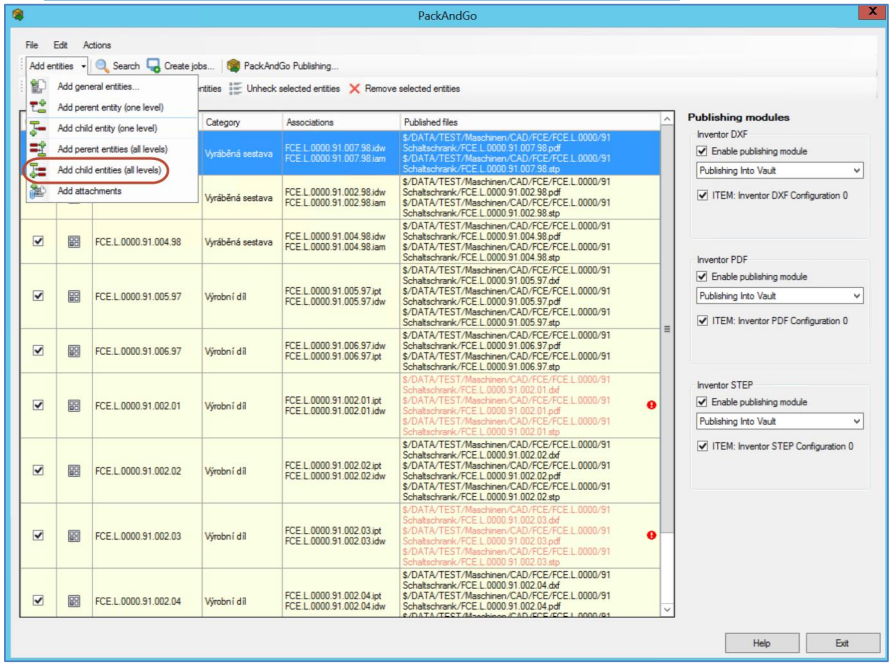

b) Multi-level under the Item – „add child entity (all level)“

2. Check from which configurations the published files should be loaded.

3. Click the „Search“ button for searching.

Found entities are listed in the “Published files“… column.
