Chamfer
Command Description
This command adds a text x45° after the dimension text.

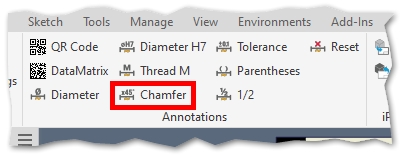

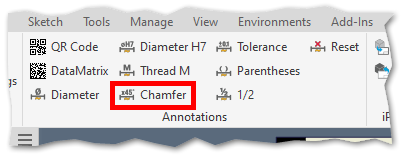

Command Location
Drawing environment
Command Settings
This command has no settings.
Workflow Overview
Run the command.
Select the dimension.
The command can also be used in reverse order (first select the dimension (multiple dimensions) and then run the command).
