# Pipe / Duct Symbols

Adds direction symbols to selected pipes or ducts

**Icon:** <picture><source srcset="/files/ZZ5rGAabvonZr1TPkPF8" media="(prefers-color-scheme: dark)"><img src="https://content.gitbook.com/content/JeZIMurpHt77wRhe3oAI/blobs/rexfcBVfpO1wzHIVabU5/PipeDuctSymbols.png" alt="" data-size="line"></picture>

**Location:** ribbon Holixa T4R MEP, panel Description

**Packages:** Holixa T4R Silver

### Overview

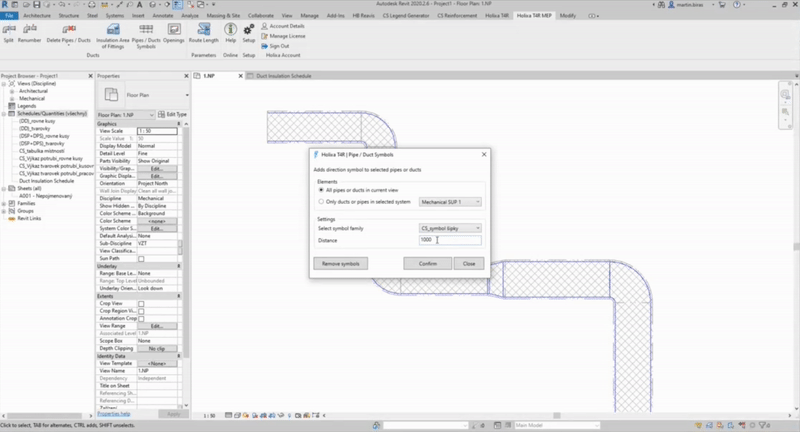

The function Duct symbols adds annotation symbols on ducts and pipes.&#x20;

In the dialogue, you can specify the system, symbol, offset and diameter.

<figure><img src="https://content.gitbook.com/content/JeZIMurpHt77wRhe3oAI/blobs/jzupHGRJj1Iy6u9Cat0P/symbols.gif" alt=""><figcaption></figcaption></figure>
