2.4.11 Specific setting for Inventor PDF module

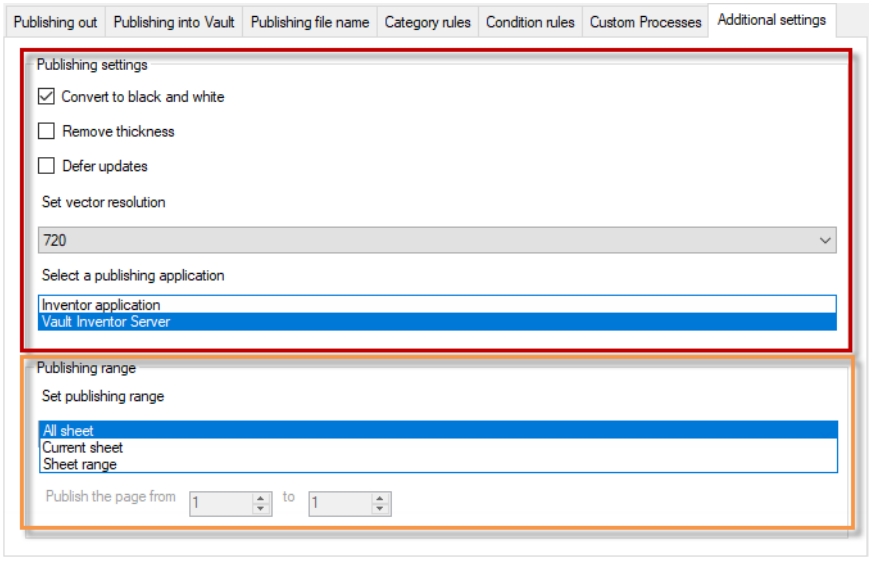

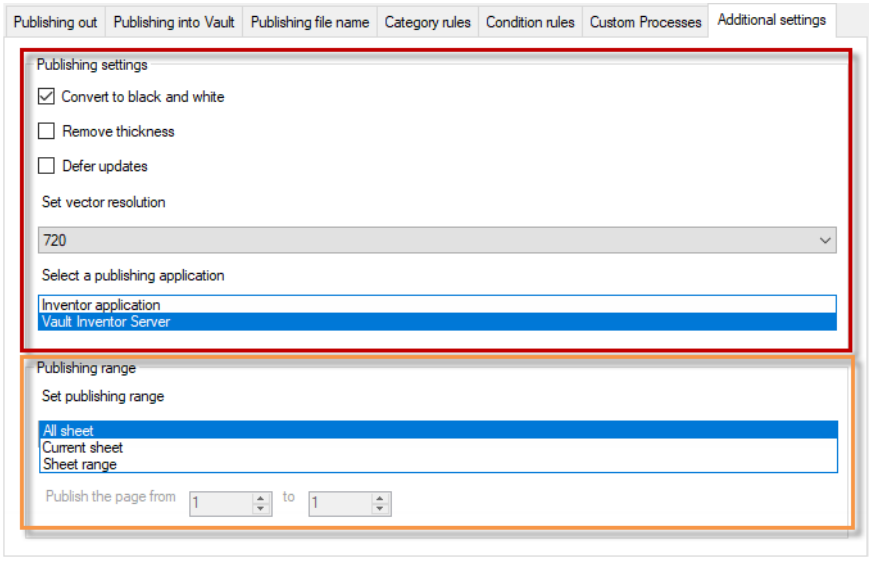

Specific settings for publishing Inventor drawing to PDF contain these options:
Convert to black and white
Remove thickness
Defend updates – the drawing will be open, but there will be no update from the model
Vector resolutions settings
Publishing application settings:
Vault Inventor Server – publishing will be run by Vault Inventor server, which is part of Vault client (licensed with Vault client).
Inventor Application – full Inventor.

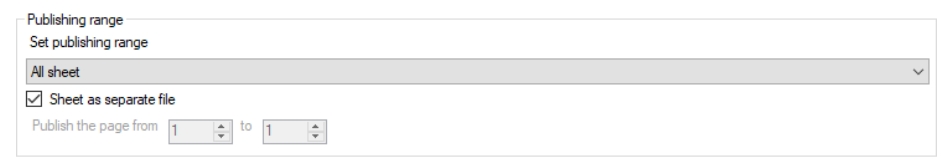

In the range setting of publishing is possible to specify which drawing sheets should be publish
All sheets
Current sheet, that was set when the drawing was saved
Sheet range selection
Sheets as separate file, where it is possible to set that every sheet would be create in the separate PDF file
