6.1 Searching over single-level Item (parts, assemblies, etc)
For the searching of published entities:

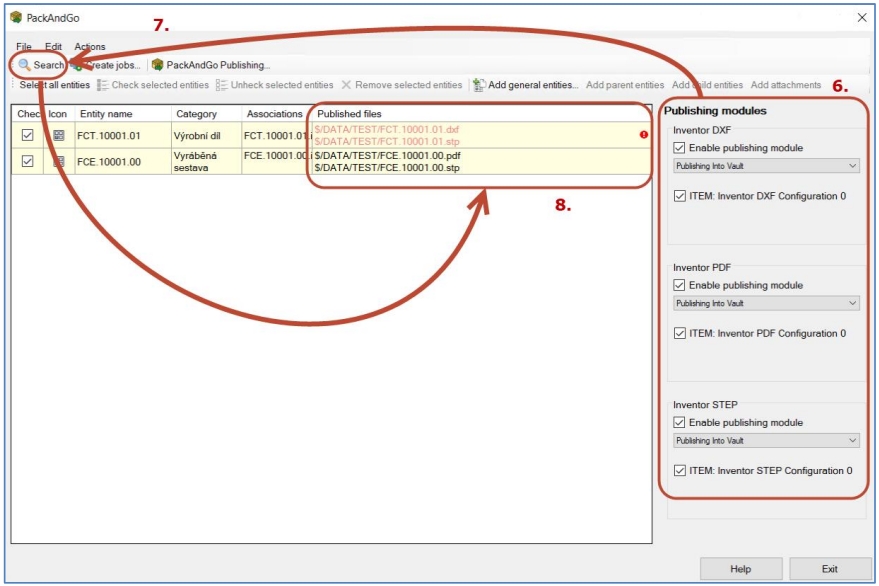

In the “Publishing modules” check from which configurations the published files should be loaded
For searching click the “Search“ button
The search entities will be displayed “Published files“

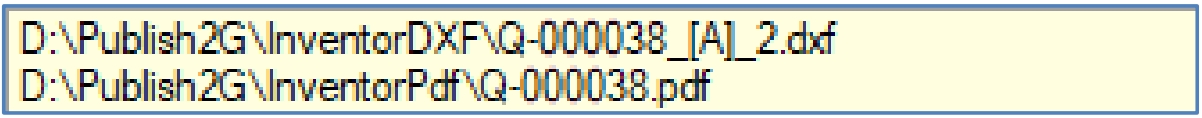

Existing publication files are listed black.

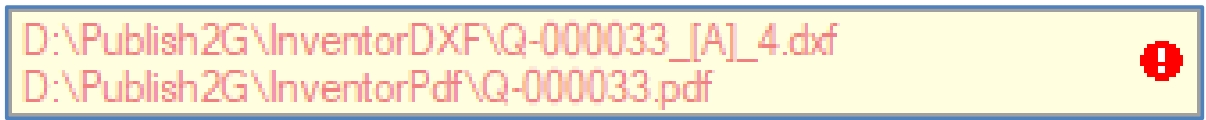

If the search of the published files in the expected path according to the configuration failed, or is not included due to the presence of a selection above the Item in the work in progress state, the files are listed in red with an error message.

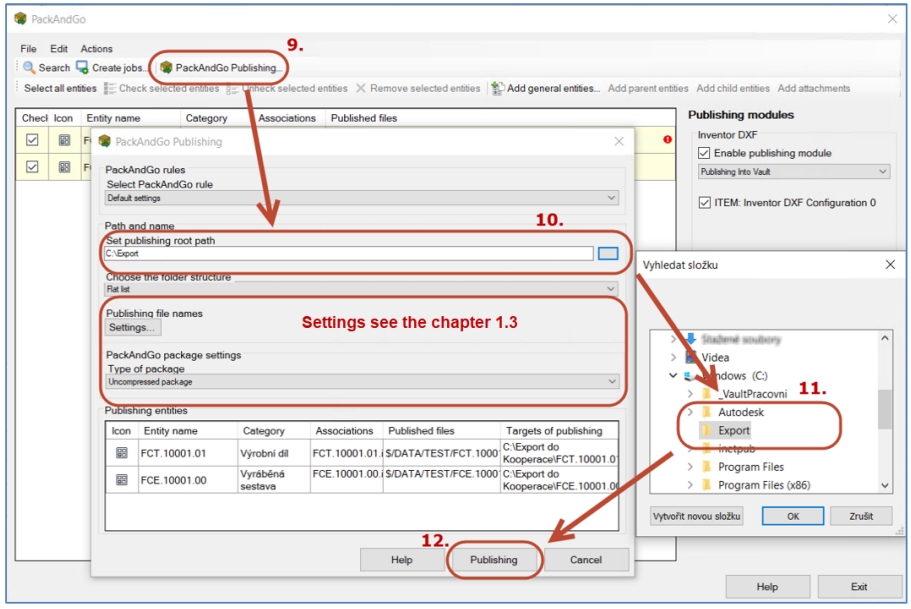

By clicking on the red exclamation mark can be identified missing files. Pack And Go publishing is started with “PackAndGo publishing…“ button In the dialog is to set:
Path where the selected documentation should be published
Structure and possible renaming
Possibility to compress the files into *.zip format

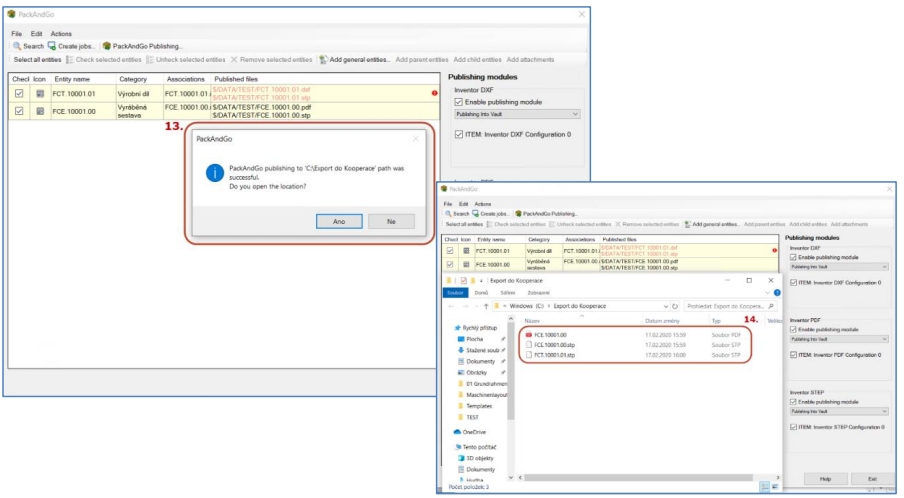

After setting, the publishing into the selected folder is performed with the “Publishing“ button
All published files are copied from the Vault into the selected folder.
