Doors

The Door function auto-detects swing direction and writes it as a parameter
Icon:
Location: ribbon Holixa T4R, panel Parameters
Packages: Holixa T4R Silver

Overview

The function Door automatically recognizes the side of door swing direction (L/R) and writes it to the door proper. It also loads the door annotation which already contains this parameter. This all occurs automatically for new projects so you don't need to invoke any command.

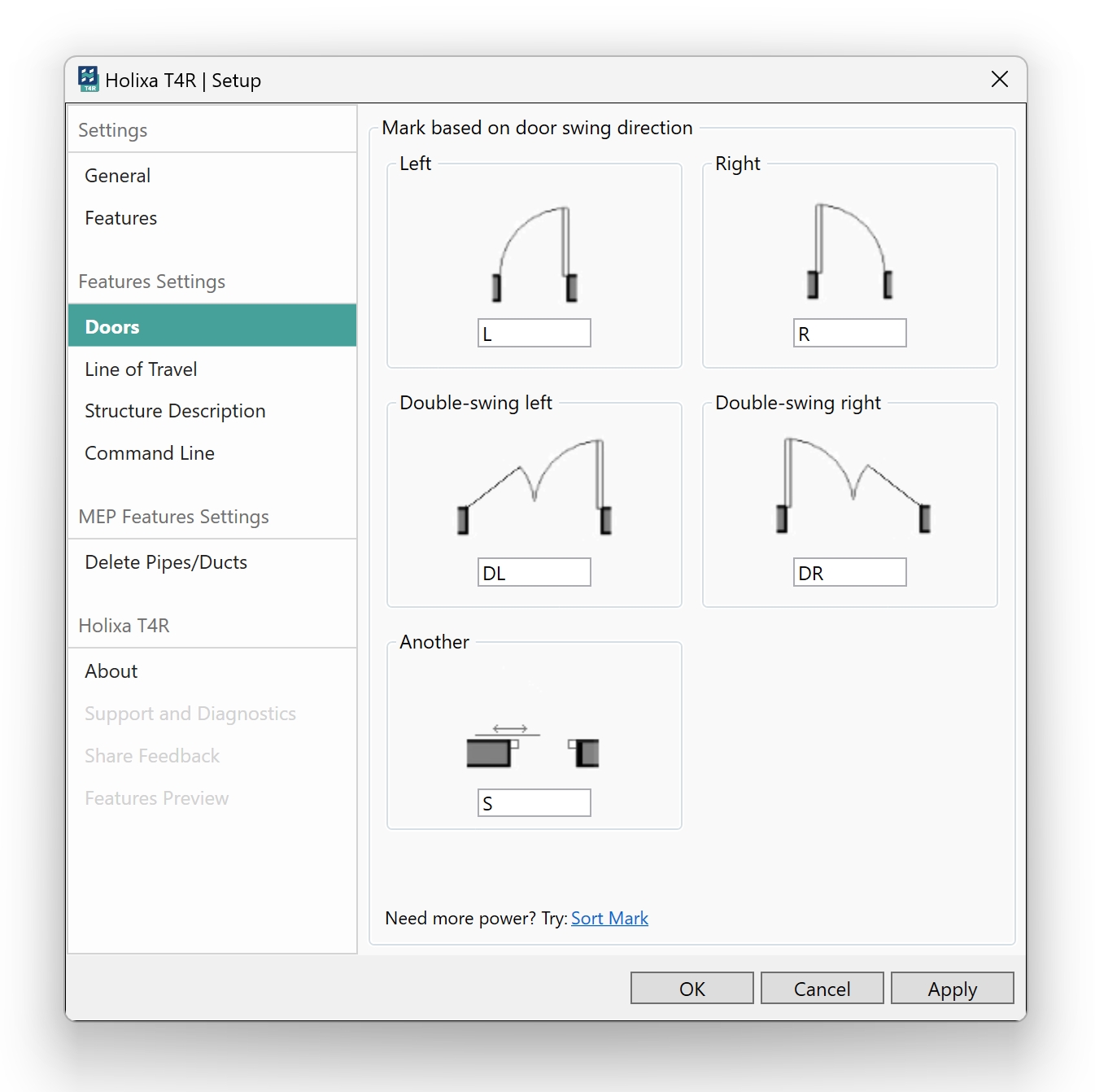

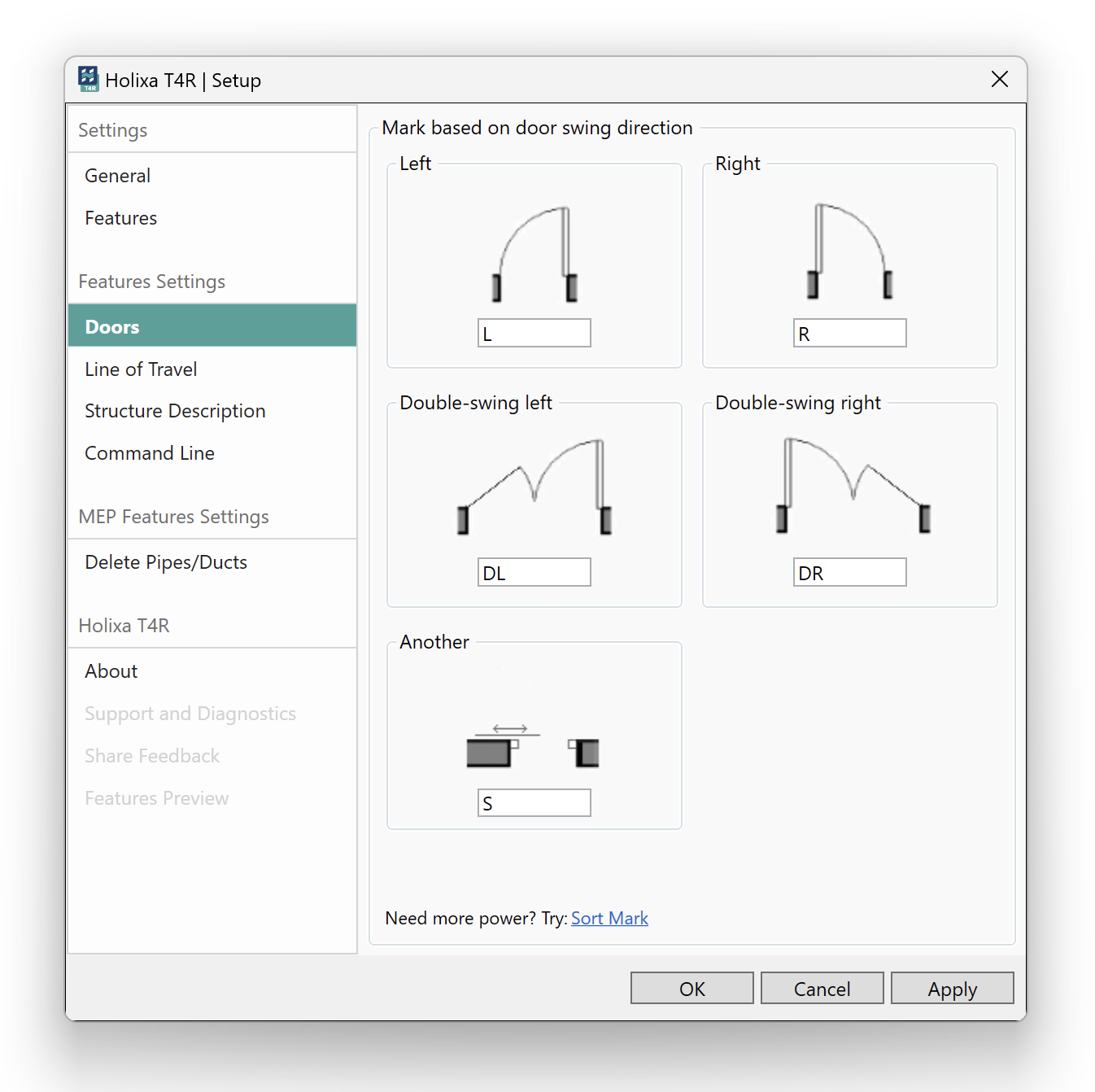

Doors Settings

Click to play the video tutorial ↓

Doors.mp4
