Split

Split the duct/pipes to the defined size

Icon:

Location: ribbon Holixa T4R MEP, panel Modify

Packages: Holixa T4R Silver

Main functionalities and benefits:

• Help save time when need to split ducts to segments of a specified length

• Native Revit functionality is completely missing something like this

Overview

The function Duct Splitter splits the selected duct into segments of a specified length.

Automatically inserts a connecting link in all split points. For globally selected ducts you can specify the segment length individually for rectangular and circular ducts or wastewater pipes.

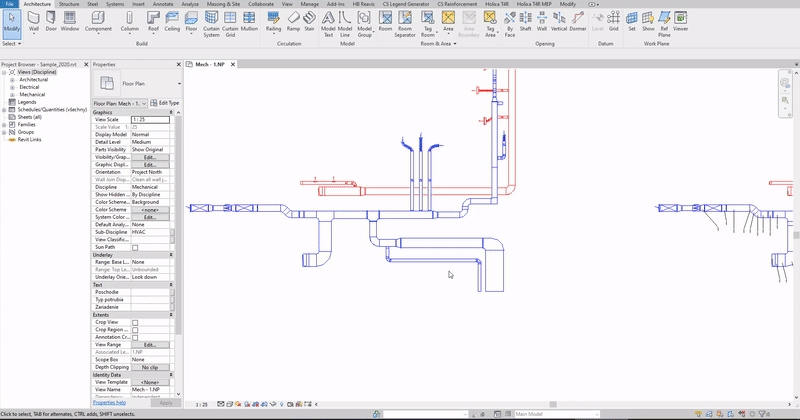

Click to play the video tutorial ↓

7MB

SplitDucts.mp4
