Structure Description

Create description of structures for wall, roof and floor

Icon:

Location: ribbon Holixa T4R, panel Description

Packages: Holixa T4R Silver

Main functionalities and benefits:

• Enhanced and automated description process

• More control of working with layers, no need to create description manually

Overview

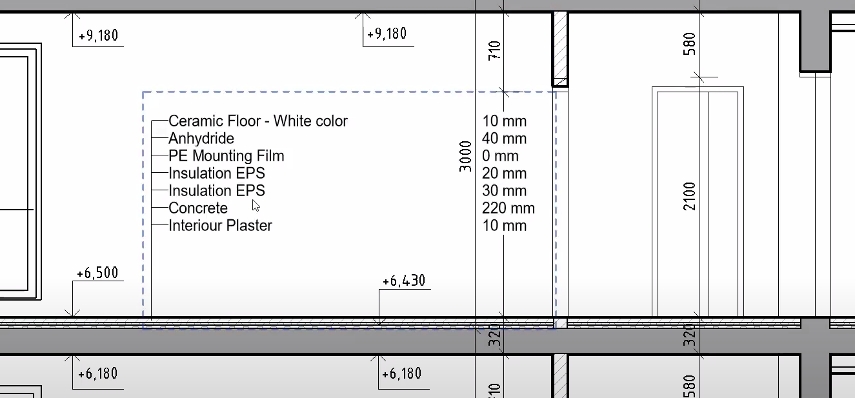

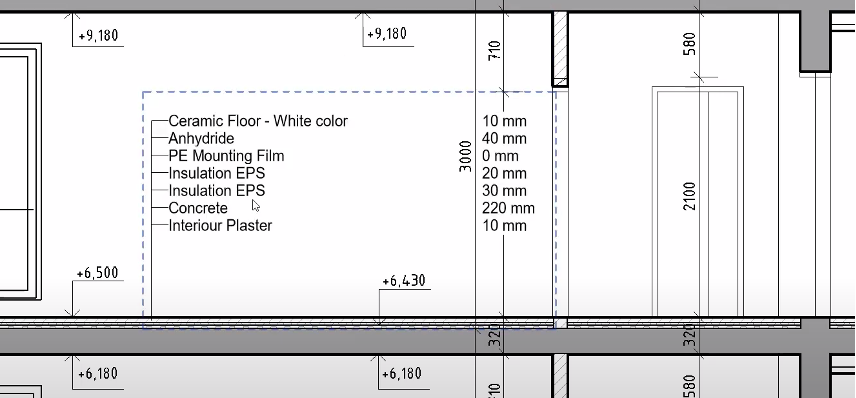

Structure Label creates automatic labels of the structure of compound walls, roofs or floors, including the material and thickness of each layer in the selected building element.

On any change in the structure, the label will be automatically updated. Supports also combined/attached floors and walls. The labels can by customized by editing the family "CS_Arial_2mm". You can assign this command to a keyboard shortcut.

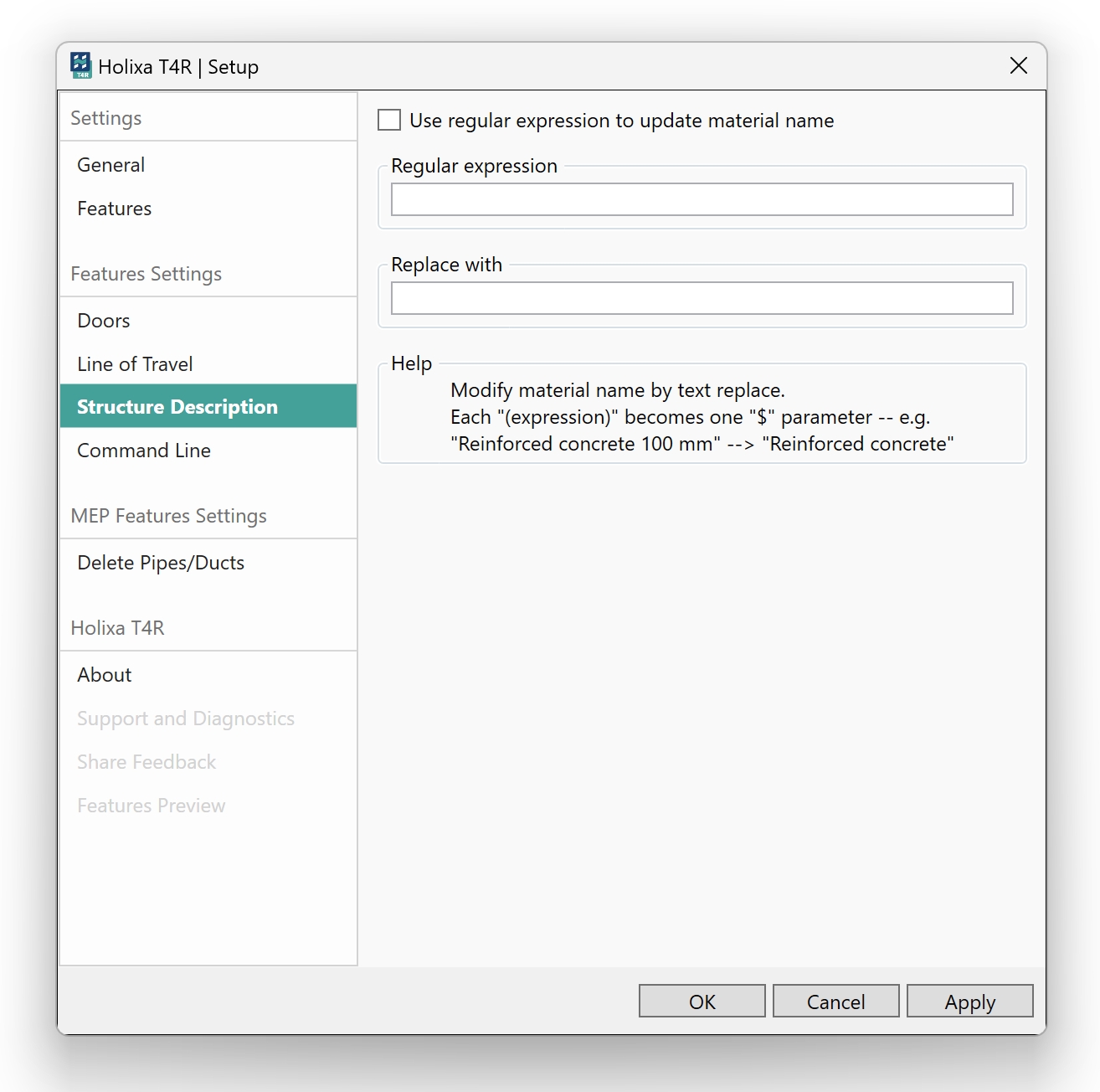

In the settings you can specify the modifier for material names - using regular expressions you can remove any numerical thickness information (to avoid duplicate thickness values).

Click to play the video tutorial ↓

8MB

StructuralDescription.mp4
