Delete Pipes/Ducts

Delete pipe or duct, place fitting and connect items together.

Icon:

Location: ribbon Holixa T4R MEP, panel Modify

Packages: Holixa T4R Silver

Main functionalities and benefits:

• Improved productivity while drawing duct / pipe branches

• No need to connect MEP fittings in a branch manually

Overview

This tool will allow users to delete a straight pipe or duct and pull the fittings on either side of the pipe/duct.

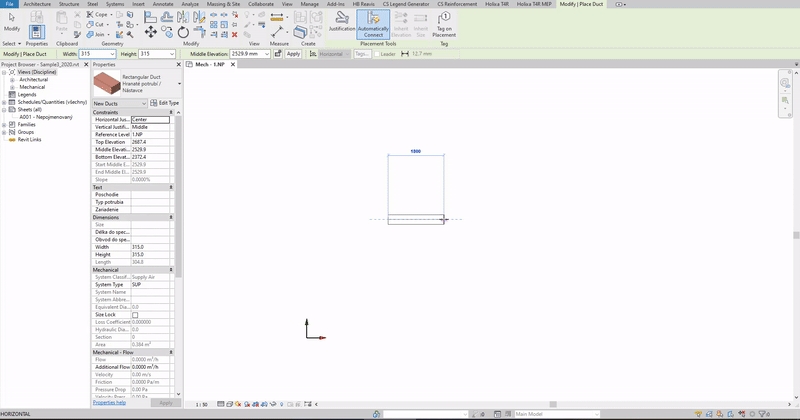

Click to play the video tutorial ↓

6MB

DeleteDuctPipe.mp4
