Select the LandXML -file

Note that this page selection defines the surface that is used comparison between LandXML file and a point cloud.

PreviousSelect the point cloudNextDefining the boundary

This dialog opens only if the calculation type is "...against a LandXML surface" and the selected point cloud is already processed.

Browse the folder structure, locate and select the LandXML -file containing the surface, which is used for the volume calculation.

Once a wanted file is selected, continue by clicking Next.

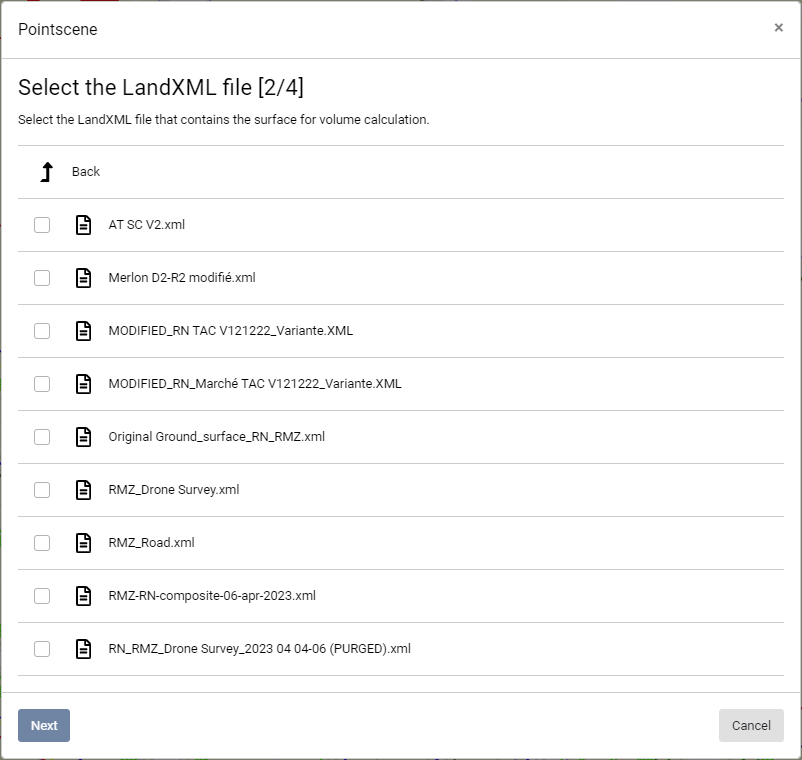

Select LandXML file -dialog
