Thread M

Command Description

This command inserts the metric thread label (M) before the dimension text.

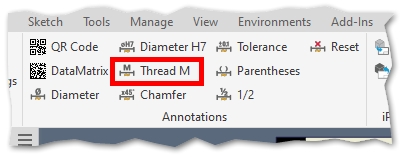

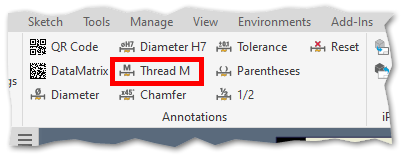

Command Location

  • Drawing environment

Command Settings

This command has no settings.

Workflow Overview

  1. Run the command.

  2. Select the dimension.

The command can also be used in reverse order (first select the dimension (multiple dimensions) and then run the command).
