Push parameters

Command Description

This command creates copies of all user parameters of the active assembly in all child components. The command creates either new parameters or overwrites the current parameters with the same name. Read-only files are excluded.
Using this feature, all assembly components can be updated/driven from one place - from the main assembly. This feature can be used as an alternative to adaptivity or linking parameters using iLogic.

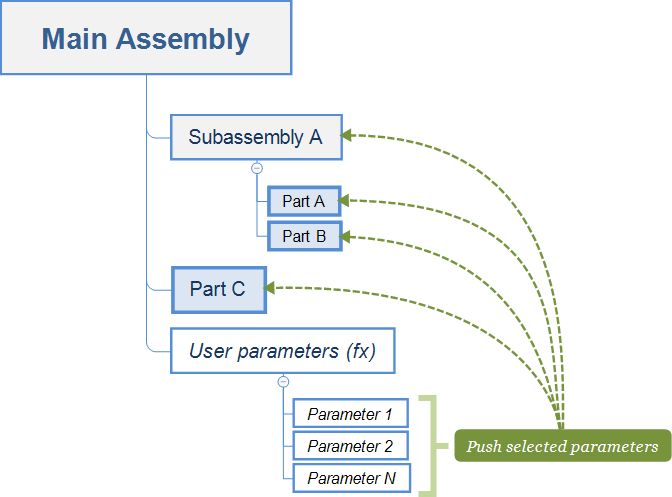

Push parameters command principle

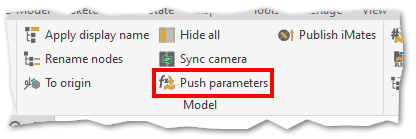

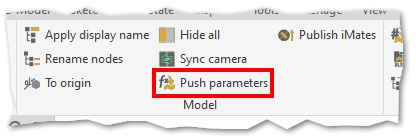

Command Location

  • Assebly environment

Command Settings

This command has no settings.

Workflow Overview

  1. 1.
    Create parameters in the main assembly.
  2. 2.
    Run the command.
  3. 3.
    Select the parameters you want to push to child components.

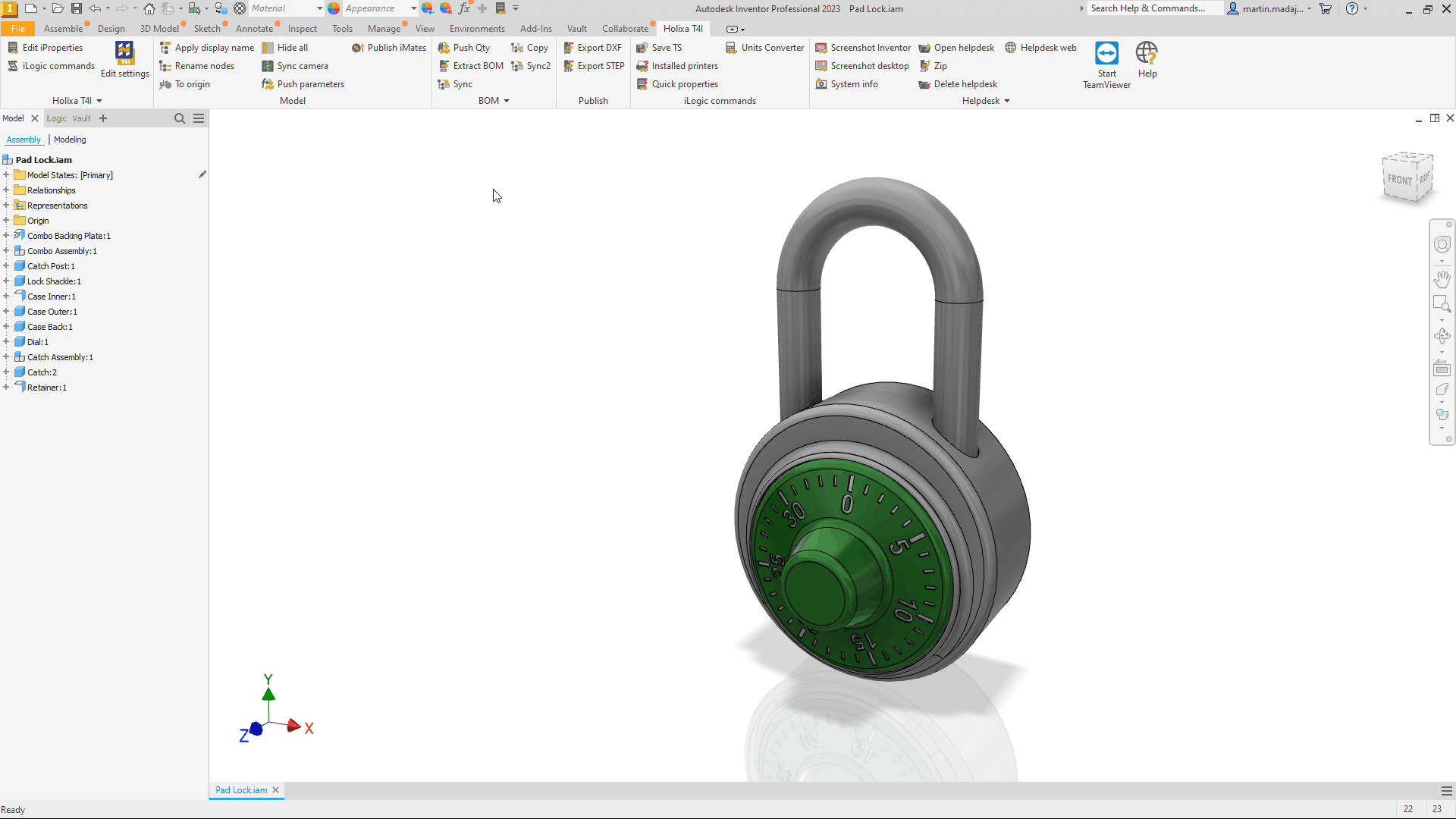

Example of Using the Push Parameters Command

Using of the Push parameters command
