UCS Visibility

Command Description

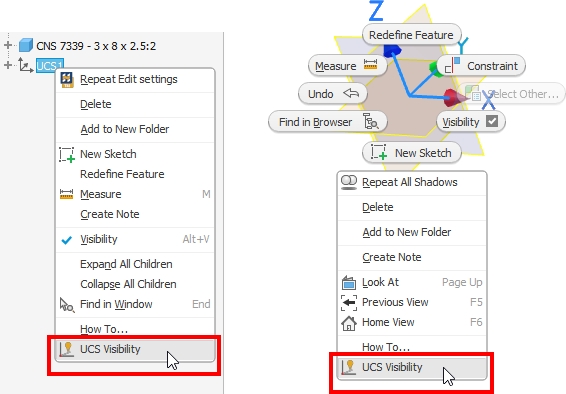

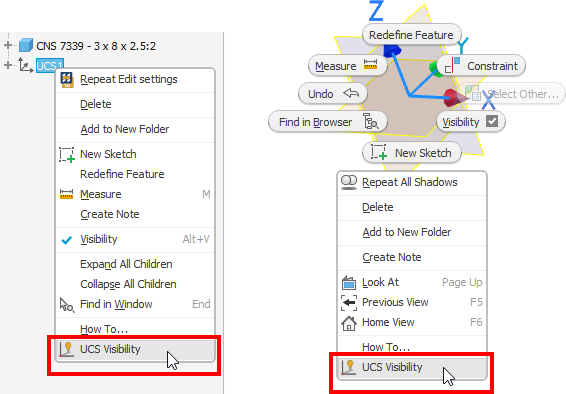

The UCS Visibility command is accessible in the right-mouse click menu on a user coordinate system (UCS). A user can set the visibility of the UCS while respecting the visibility settings of individual UCS features (origin, axes, planes).
It means, for example, that when setting the UCS visibility to ON, only the UCS features allowed in settings will be turned visible.

Command Location

  • Assembly and part environments

Command Settings

Holixa T41 -> Holixa T4I -> Edit settings -> Other tools -> UCS Visibility

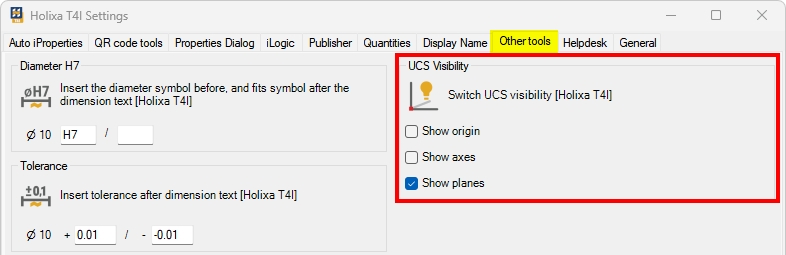

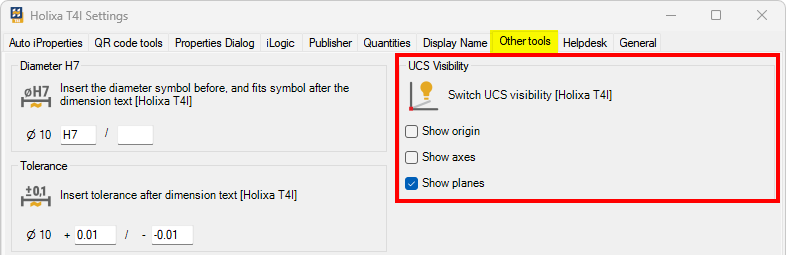

UCS Visibility settings
Check the UCS features you want to be visible when turning the UCS visibility to ON.

Workflow Overview

  1. 1.
    In settings, select the UCS features that should be visible when turning the UCS visibility to ON.
  2. 2.
    Create the UCS.
  3. 3.
    Use the command.

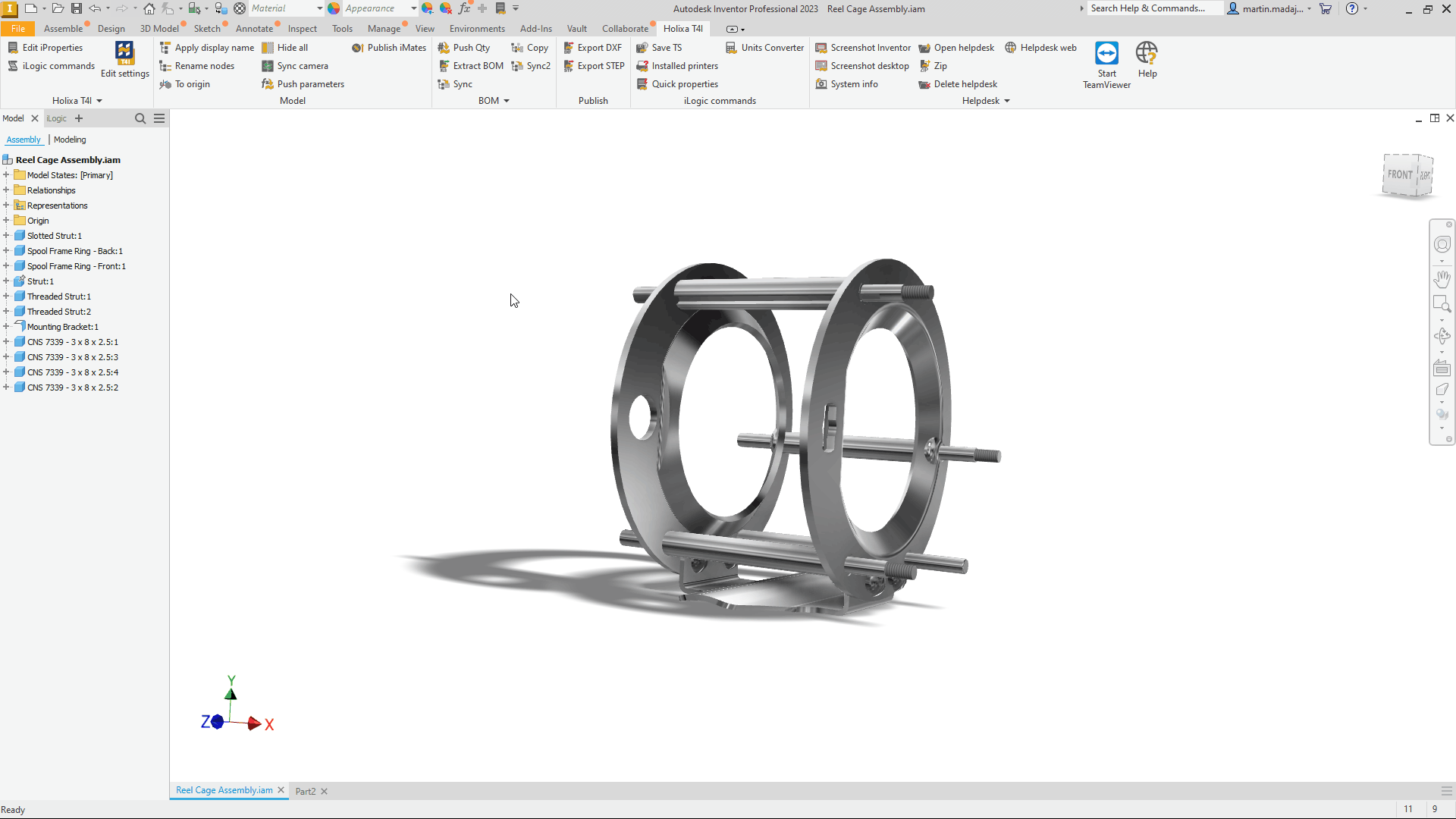

Exampe of Using the UCS Visibility Command

Example of using the UCS Visibility command
