Sync 2

Command Description

The Sync 2 command copies the item numbers of the Parts Only BOM view of the current (main) assembly to the Parts Only BOM view of the subassemblies.

This command modifies components' item numbers in subassemblies.

This command is to be run in the main assembly only.

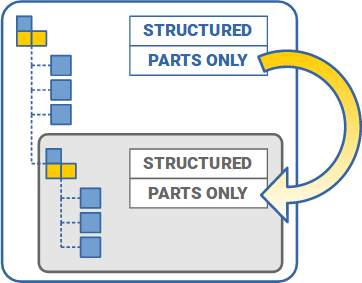

A schematic image of the process is in the image below.

Sync 2 command workflow

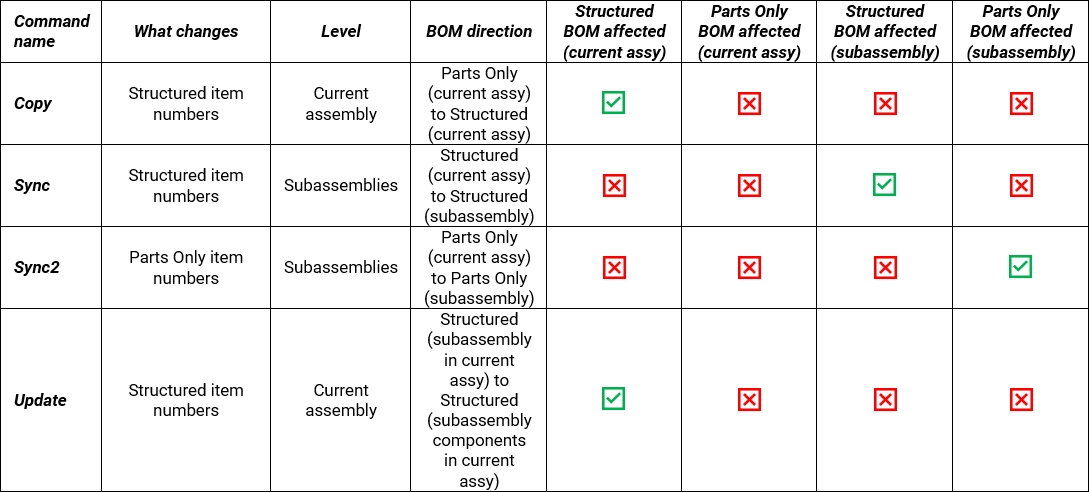

Summary of changes to the BOM performed by the command (a comparison matrix)

The comparison matrix of BOM manipulation tools

Command Location

• Assembly environment (Be.Smart T4I -> BOM panel, Assemble -> Manage panel).

Command Settings

This command has no settings.

Workflow Overview

1. Run the command.

Description of changes performed by the command

In the Parts Only BOM of the main assembly, components 004, 005, and 006 have item numbers 4, 5, and 6 (after the dot symbol). Item numbers of components 004, 005, and 006 in the parts-only BOM view in subassembly 010 are 1, 2, and 3.

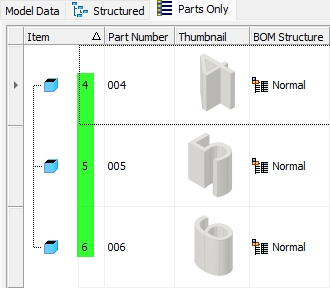

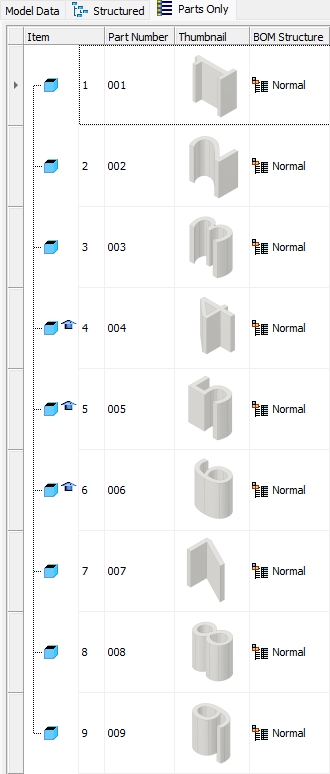

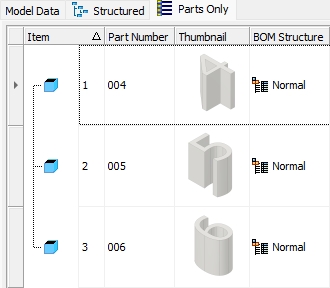

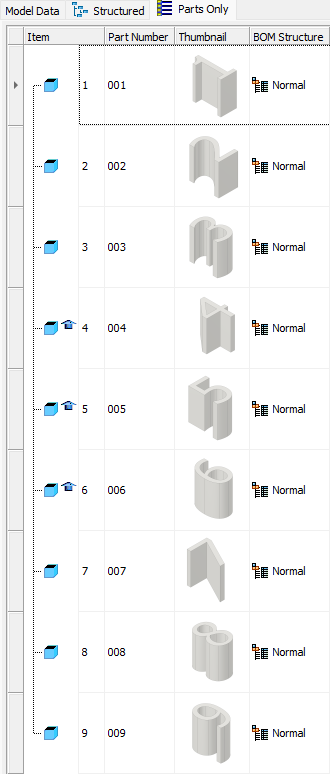

Parts-only main assembly BOM before applying the command	Parts-only subassembly BOM before applying the command	Parts-only subassembly BOM after applying the command

After running the command, the parts-only numbering in the subassembly matches the parts-only numbering of the main assembly. The subassembly file is physically modified by the command.
