Export DWG

Command Description

This command exports a drawing to a DWG file. The export can be manual or automatic on the save event. The command can be configured in the Be.Smart T4I Settings window on the Publisher -> DWG tab.

Command Location

  • Drawing environment

Command Settings

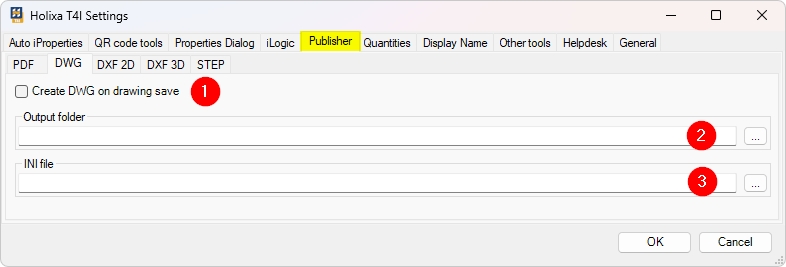

Holixa T4I -> Holixa T4I -> Edit settings -> Publisher -> DWG
  1. 1.
    Automatically creates DWG from active drawing after saving to the Output folder.
  2. 2.
    Sets the output folder for DWG files. When empty, DWG is created in the DWG subfolder in the same location as the source drawing. More can be found in Saving files using relative paths.
  3. 3.
    Full path to the configuration INI file. When empty, a default configuration is used. You can use the default configuration from the installation path or create your own during manual export to DWG.
For larger files, the publishing process may take a long time to complete. In such cases, it is not recommended to use automatic on-save publishing. To speed up your workflows, disable the on-save publishing in settings and use manual publishing instead.
