This is a sample iLogic command. It provides iProperties-based information about the selected part in an assembly environment. Currently, the Part number and Description are reported when using this command.
Command Location
Assembly environment
Command Settings
This command has not direct settings but if required, a user can modify the source iLogic rule to add/remove the desired iProperties. The iLogicVB file is stored in C:\ProgramData\Autodesk\ApplicationPlugins\Holixa.Tools4Inventor.bundle\Samples\iLogic.

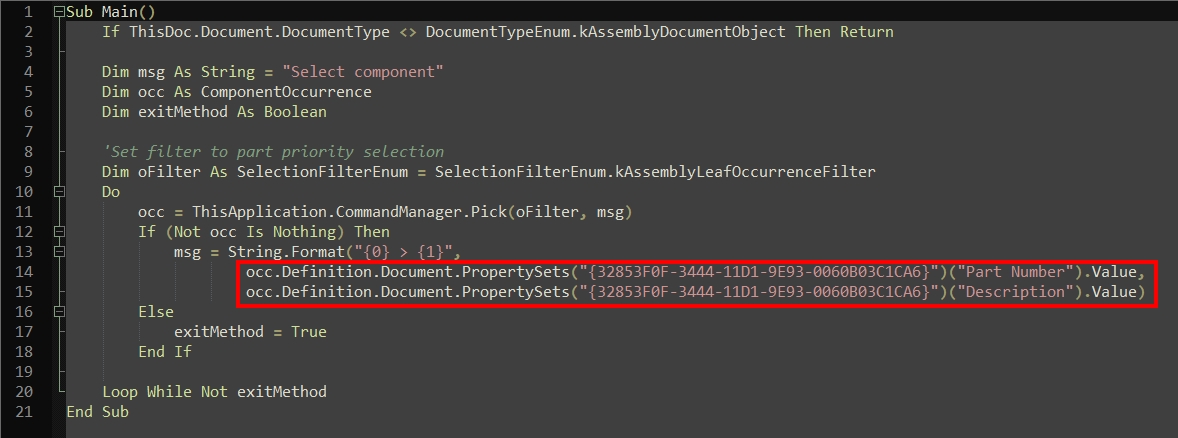

Section of the rule containing the definition of iProperties
See the iLogic Commands chapter for how to find the path to the rule.
Workflow Overview
Run the command.
Click the part to display the quick properties

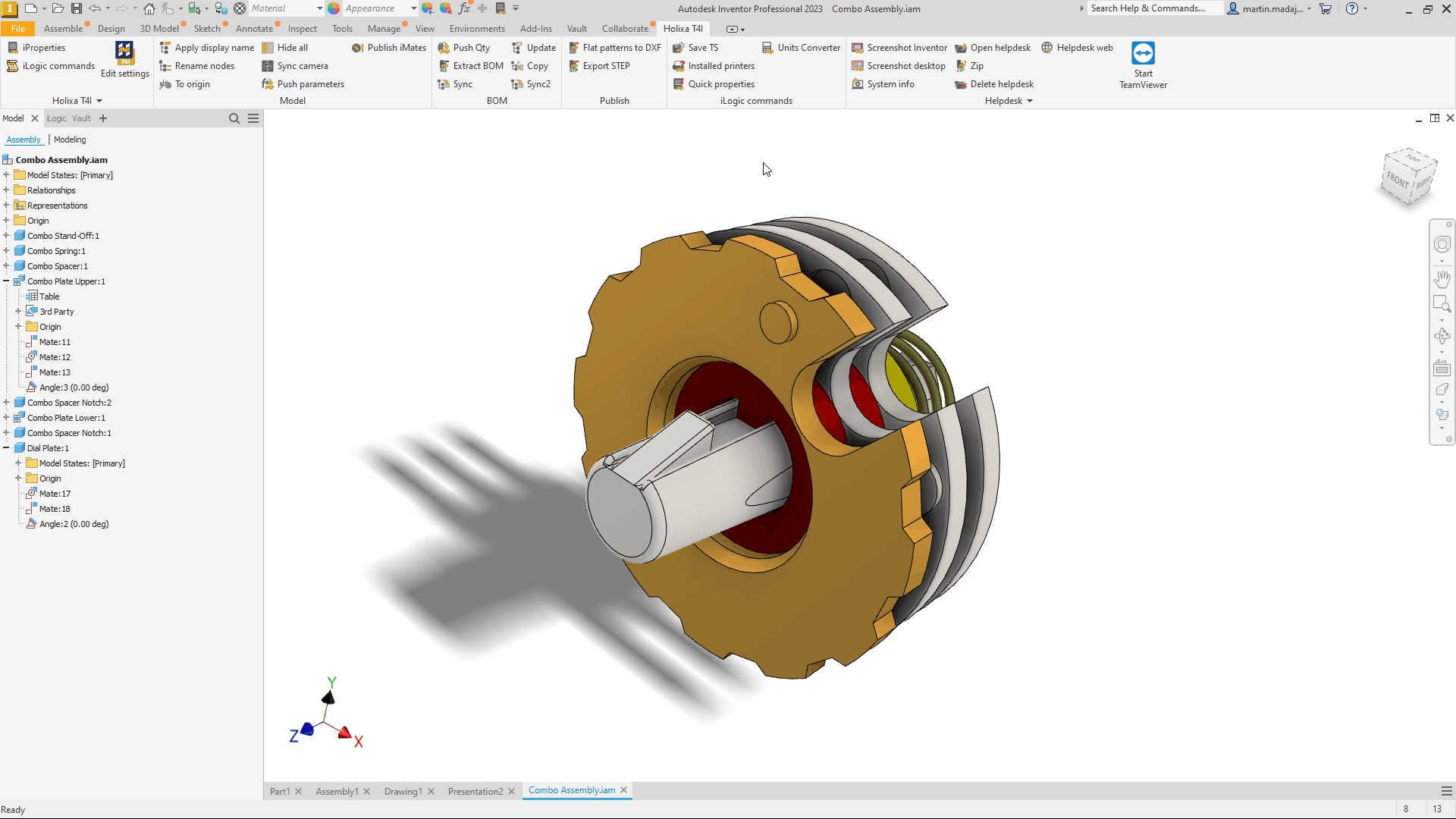

Example of Displaying the Quick Properties
Displaying the part information using Quick properties command
