Sync

Command Description

The Sync command copies the item numbers of the Structured BOM view of the current (main) assembly to the Structured BOM view of the subassemblies.

This command modifies components' item numbers in subassemblies.

This command is to be run in the main assembly only.

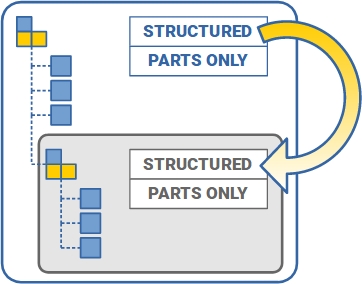

A schematic image of the process is in the image below.

Summary of changes to the BOM performed by the command (a comparison matrix)

Command Location

  • Assembly environment (Be.Smart T4I -> BOM panel, Assemble -> Manage panel).

Command Settings

This command has no settings.

Workflow Overview

  1. Run the command.

Description of changes performed by the command

In the Structured BOM of the main assembly, components 004, 005, and 006 have item numbers 4, 5, and 6 (after the dot symbol). Item numbers of components 004, 005, and 006 in the structured BOM view in subassembly 010 are 1, 2, and 3.

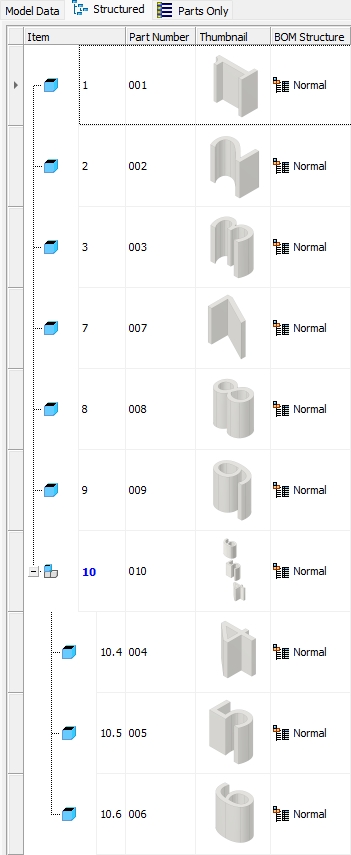

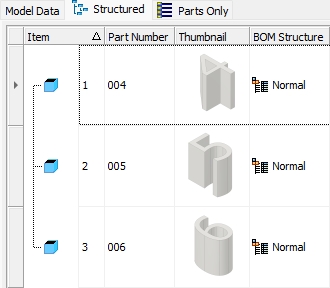

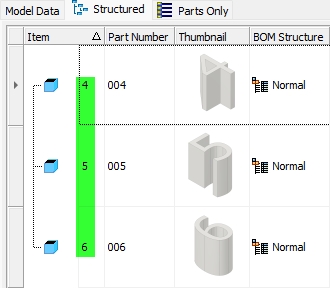

Structured main assembly BOM before applying the commandStructured subassembly BOM before applying the commandStructured subassembly BOM after applying the command

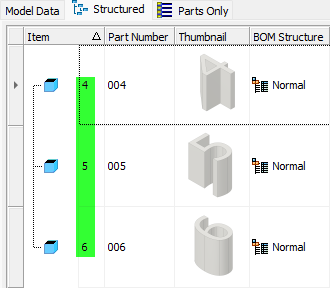

After running the command, structured numbering in the subassembly matches the structured numbering (behind the dot symbol) of the main assembly. The subassembly file is physically modified by the command.
