To origin

Command Description

This command moves the selected component or multiple components to the origin of the assembly. Unlike the built-in Inventor command Ground and Root, To origin does not ground the selected components in origin.

Command Location

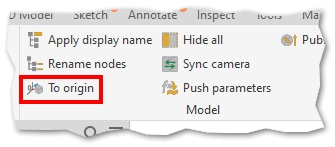

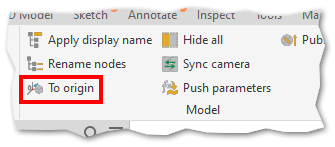

  • Assembly environment (Be.Smart T4I -> Model -> To origin).

  • Assembly environment (Assemble -> Position -> To origin).

Command Settings

This command has no settings.

Workflow Overview

  1. Run the command.

  2. Select the component.

The command can also be used in reverse order (first select the component (multiple components) and then run the command).

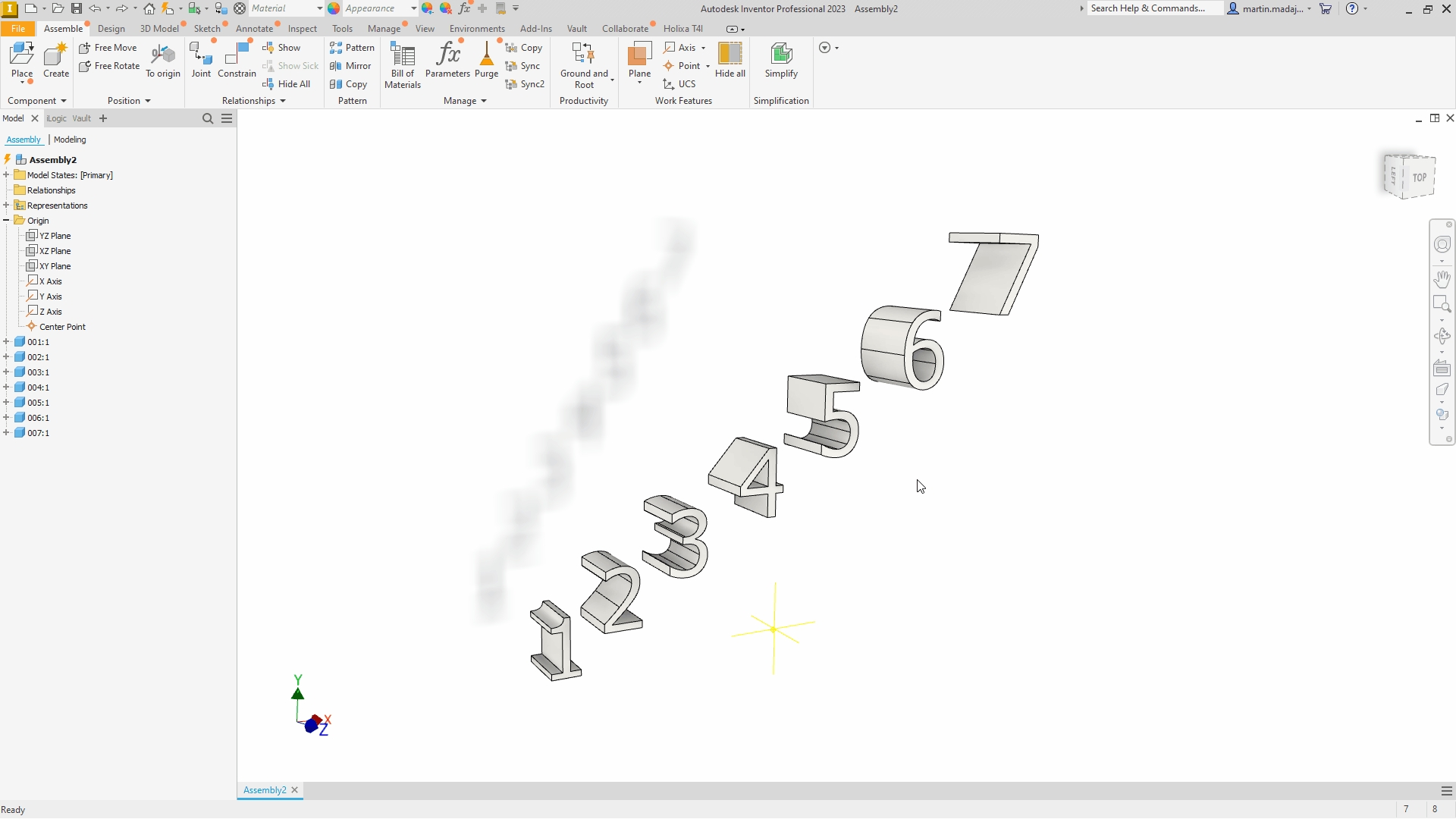

Example of using To origin command
